The HVAC range, product by product
Six categories, supplied ex-stock or built to duty from our Delhi office. Construction details below are indicative — final construction, ratings and materials are confirmed against your specification at quotation.
Air Handling Unit (AHU)
Floor, ceiling and outdoor-mounted air handling units assembled to the duty you specify — fan section, coil rows and filtration selected against airflow and static pressure rather than sold from a fixed catalogue.
- Single or double-skin panel construction
- Insulated panels with thermal-break framing
- DIDW or plug-fan sections
- Chilled water / DX coils, multi-row
- Pre-filter and bag filter sections
- Drain pan, dampers and access doors
- Commercial offices and retail
- Pharmaceutical and clean areas
- Hotels and auditoria
- Process and industrial air

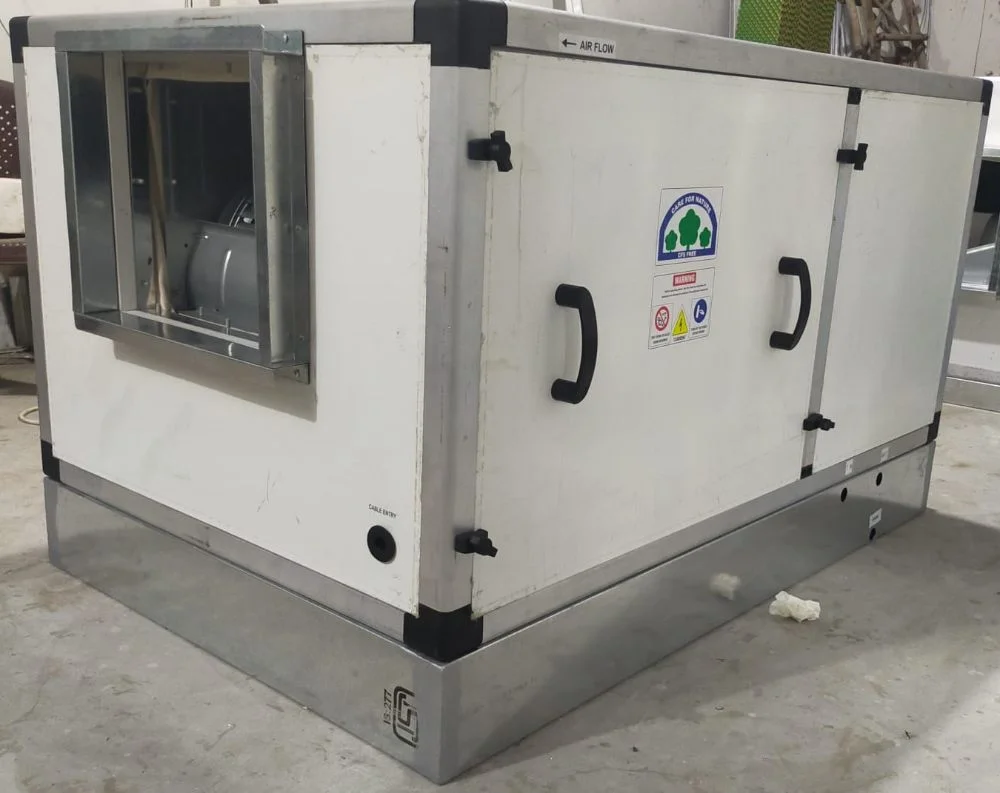

Treated Fresh Air Unit (TFA)
Dedicated outdoor-air units that filter, cool and dehumidify ventilation air before it reaches the space, taking the latent load off terminal units and holding indoor humidity within design limits.
- Deep coil configurations for dehumidification
- Double-skin construction with drain-through base
- Pre-filter and fine-filter stages
- Fresh-air dampers and actuators
- Optional heat recovery wheel
- Pharma and clean-area ventilation
- Offices with high occupancy density
- Hospitals and laboratories
- Humid-climate installations

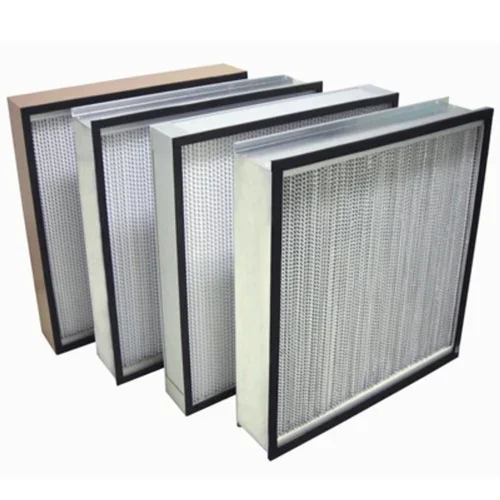

Filters — Fine, HEPA & Bag
A full filtration train for new units and replacements: washable and disposable pre-filters, extended-surface bag filters, and terminal HEPA modules for cleanroom classifications.
- Fine / pre-filters in aluminium or GI frames
- Extended-surface pocket (bag) filters
- HEPA modules with gasket or gel seal
- Standard and made-to-size panels
- Replacement media held in stock
- Cleanroom terminal filtration
- AHU and TFA filter sections
- Scheduled replacement programmes
- Paint booths and dust-sensitive lines

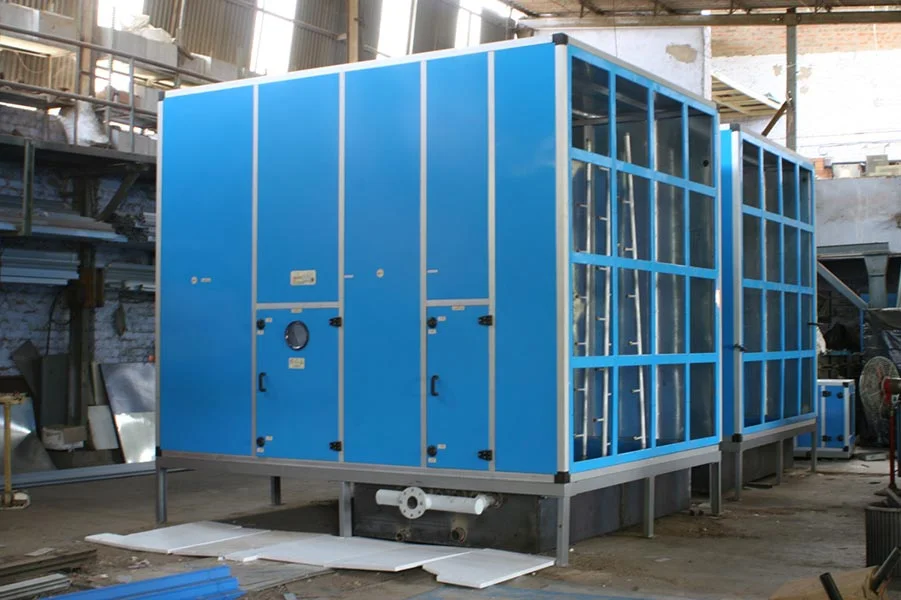

Air Washer
Evaporative air washer systems that cool and humidify large volumes of plant air at a fraction of the running cost of mechanical refrigeration — the standard approach for textile and paper plants.
- Cellulose pad or spray-type configurations
- FRP / GI casing options
- Circulation pumps, tanks and eliminators
- Axial or centrifugal supply fans
- Ducting and distribution accessories
- Textile spinning and weaving sheds
- Paper and printing plants
- General factory comfort cooling
- Poultry and agro processing

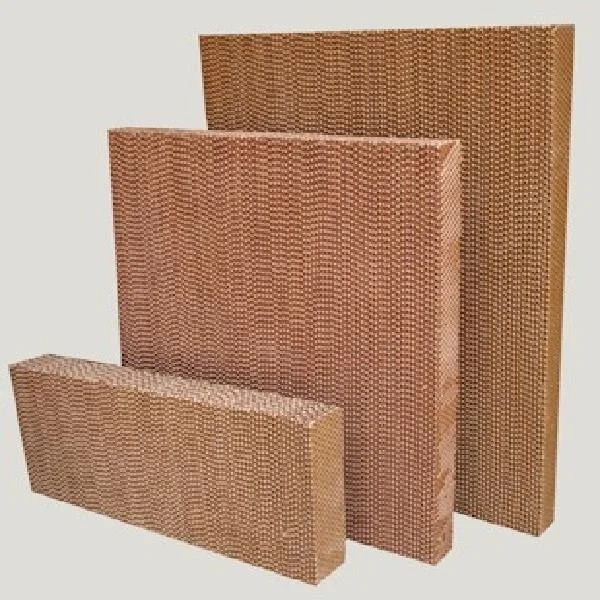

CELdek Pad
Cellulose evaporative cooling pads with cross-fluted geometry for high heat-exchange efficiency and low pressure drop, supplied in standard blocks or cut to your frame size.
- Cross-fluted cellulose media
- Standard thicknesses, cut to size
- Rigid, self-supporting blocks
- Replacement sets for existing frames
- Air washers and pad-and-fan houses
- Evaporative coolers and desert coolers
- Greenhouse and poultry ventilation
- Retrofit of degraded pad banks

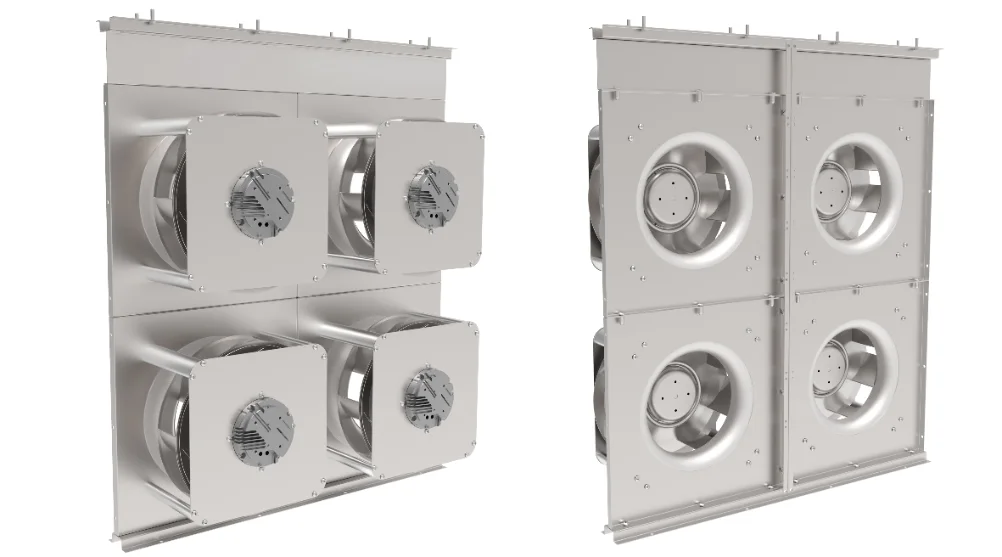

EC Fan
Electronically commutated plug fans and motorised impellers: integrated motor and drive, 0–100% speed control without an external VFD, and a measurable drop in fan energy against belt-driven equivalents.
- Backward-curved impeller with integral EC motor
- Built-in drive, 0–10 V or Modbus control
- Plug-and-play retrofit plates
- Single and fan-array configurations
- AHU fan-section retrofits
- Fan arrays in large air handlers
- Energy-saving upgrade projects
- Variable-volume ventilation systems
Send the duty conditions — we'll come back with a selection.
Airflow, static pressure, tonnage, filtration class or the model being replaced is enough to start.
